By 1931, the German army had already began their search for a new standard service pistol to replace the aging and costly P08 Parabellum, better known as the "Luger". Fritz Walther saw an opportunity for his company and immediately began working on a series of designs that would ultimately lead to the success known today as the Walther P38. Fritz Walther knew at once that only a design in 9mm Parabellum would be successful. He also decided that the design and construction of the new pistol would have to improve upon the negative factors of the P08 Luger. Those factors were: cost, reliability, and fewer parts.
The first design in this series of pistols was the Walther PP. This pistol was very successful; it was a blowback action, with a double action trigger. Walther thought first that they simply needed to enlarge the dimensions of the PP in order to have a successful 9mm Parabellum design. The blowback design was the key, and was much cheaper to produce than any locking systems. The first unlocked military pistol was known as the Walther MP (militarpisole). This pistol had a very high weight, and recoil spring was difficult, and not reliable. Only about a dozen of these pistols left the factory, and only about 6 are known to still exist! Walther decided that they needed a locking system. However it needed to be simple, cheap, and still reliable. They found one developed by an American named Pederson, who developed it for the Remington pistols. Once they had this design, the weight and dimensions of the MP were changed. This oversized PP had a locking system with a rotating barrel. However all of these designs were rejected, because of the high prices, as well as weight.
The Walther PPK was another design in this series which influenced the later P38. The main design feature of the PPK was its' cost savings. The PPK frame used far less materials to make it, since it did not have a back strap. The backs trap was performed by the plastic wrap around grips. This saved materials, weight, time, and cost! This would eventually be used on the P38 as well.
Walthers' next design incorporated an enclosed hammer, as well as a free floating barrel (the army demanded a free floating barrel for reliability). This new pistol was known as the Walther AP (armee-pistole). This pistol had a take down lever like the P08, and also had the double action trigger system of the PP. It also had a locking system, but it differed from the MP with only having a single locking block rather than two. The AP was the building block to Walther next design - the HP, or Heeres-Pistole. Walther made a few minor changes to come up with the Walther HP. The HP had an external hammer, which the army preferred, and had a single case harden locking block, which prevented it from cracking. By late 1938 the Walther HP was in production, for commercial sales. Serial numbers ended at 1025. With a few more minor changes, the pistol finally was accepted by the German army, and "P38" became the official model name!

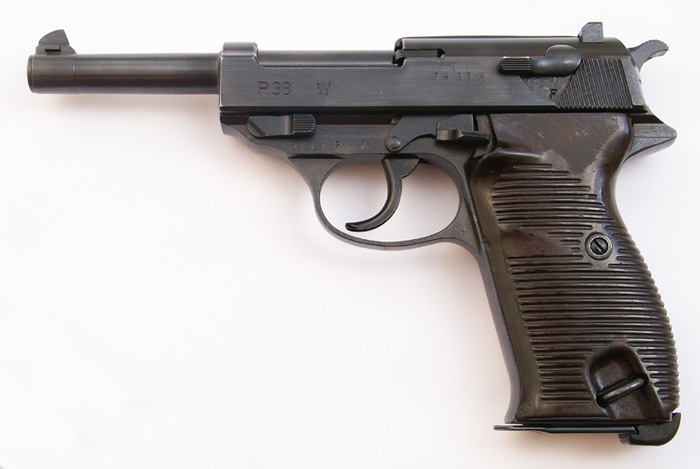

The army initially ordered 800 pieces on April 1, 1939. Many of these pistols had mixed parts between the HP and P38 and be marked with the commercial proof. All of these were manufactured by hand! The first really genuine P38 were known as the Zero-series. These started with the serial numbers 01-013000, and below is pictured an example of one of these Zero-series P38s. These were the very first military P38s, and only 13,000 were made between April 1939 and March 1940.
On April 26, 1940 official test were completed, and the army ordered 410,600 P38s. Production was very slow at first and although Walther was projected to complete 175,000 pistols by June 1940, only 9,750 were completed and delivered. Finally on April 1, 1941, Walther was able to achieve its' monthly goal of 10,000 pistols. However, Walther still needed help to meet with the armies' needs. By the end of the war 1.2 million P38s were produced, of which Walther made only about 580,000.
Because the Wehrmacht needed more than 10,000 pistols per month, they looked for other manufacturers to produce the P38. In June, 1940 the Army issued orders to the Mauser, Obendorf to cease production of the P08 Luger, and begin to produce the P38. The leadership at the Mauser plant was not in favor of this change, and the production of the P08 Luger continued up until 1942. Finally in November 1942, the production of the P38 began at Mauser. At the end of December 1942, Mauser delivered its' first 700 pistols with the code byf 42. By the end of the war Mauser produced about 300,000 P38s.
The Spreewerke Factory at Berlin-Spandau was the third manufacturer assigned to produce the P38. Production began in September 1941. At the end of June 1942 they delivered 50 pistols for testing, which were rejected. In August they delivered another 300 for testing, and these were finally given the long awaited acceptance proof, (eagle 88). The army now demanded 10,000 pistols per month from Spreewerke, although this amount was never obtained. By the end of the war Spreewerke produced around 285,000 P38s.
